Danfoss 151H3052 OMEW 315 11070954 Hydromotor MR 315 Orbital Motor

Brand Name : Hanjiu

Model Number : BMRWN315

Certification : ISO9001:2015

Place of Origin : China

MOQ : 50 units

Price : Negotiable

Payment Terms : T/T, Western Union,Paypal .

Supply Ability : 100,000 units / Year

Delivery Time : 10-15 working days

Packaging Details : Carton packing , with a tray or wooden box if needed .

Product name : Hydraulic Orbital Motors

Displacement : 36cc,50cc,80cc,100cc,125cc,160cc......500cc

Applications : auger,trench,agricultural machine

Replacement : OMR, M+S MR

Max.torque : peak 840 N.M

Max.flow : cont 60/int.75 L/min

Contact Now

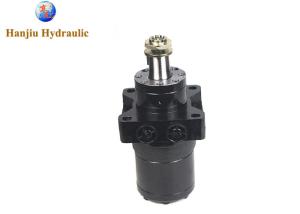

Danfoss 151H3052 OMEW 315,11070954 HYDROMOTOR, MR 315 Orbital motor

Product details:

product type BMR motors
displacement 315cc
flange 4-Ø13.5 Wheel
Mount , Ø82.5×9.4
shaft
1:10Cone shaft Ø35, parllel key B6×6×20
oil ports G1/2 manifold mount 4-M8,G1/4


Main Specifications:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type BMR
BMRS
36		 BMR
BMRS
50		 BMR
BMRS
80		 BMR
BMRS
100		 BMR
BMRS
125		 BMR
BMRS
160		 BMR
BMRS
200		 BMR
BMRS
250		 BMR
BMRS
315		 BMR
BMRS
375
Geometric displacement (cm3/rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1085 960 750 600 475 378 310 240 190 155
int. 1220 1150 940 750 600 475 385 300 240 190
Max. torque (N·m) cont. 72 100 195 240 300 360 360 390 390 365
int. 83 126 220 280 340 430 440 490 535 495
peak 105 165 270 320 370 460 560 640 650 680
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 10 7 6 5
int. 9.8 11.2 15 15 14.5 14 13 9.5 9 8
Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 16.5 13 11 9 7
int. 16.5 17.5 20 20 20 20 17.5 15 13 10
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 20 17.5 15
Max. flow (L/min) cont. 40 50 60 60 60 60 60 60 60 60
int. 45 60 75 75 75 75 75 75 75 75
Weight (kg) 6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5

Danfoss 151H3052 OMEW 315 11070954 Hydromotor MR 315 Orbital MotorDanfoss 151H3052 OMEW 315 11070954 Hydromotor MR 315 Orbital Motor
Danfoss 151H3052 OMEW 315 11070954 Hydromotor MR 315 Orbital Motor

Danfoss 151H3052 OMEW 315 11070954 Hydromotor MR 315 Orbital Motor
Danfoss 151H3052 OMEW 315 11070954 Hydromotor MR 315 Orbital Motor

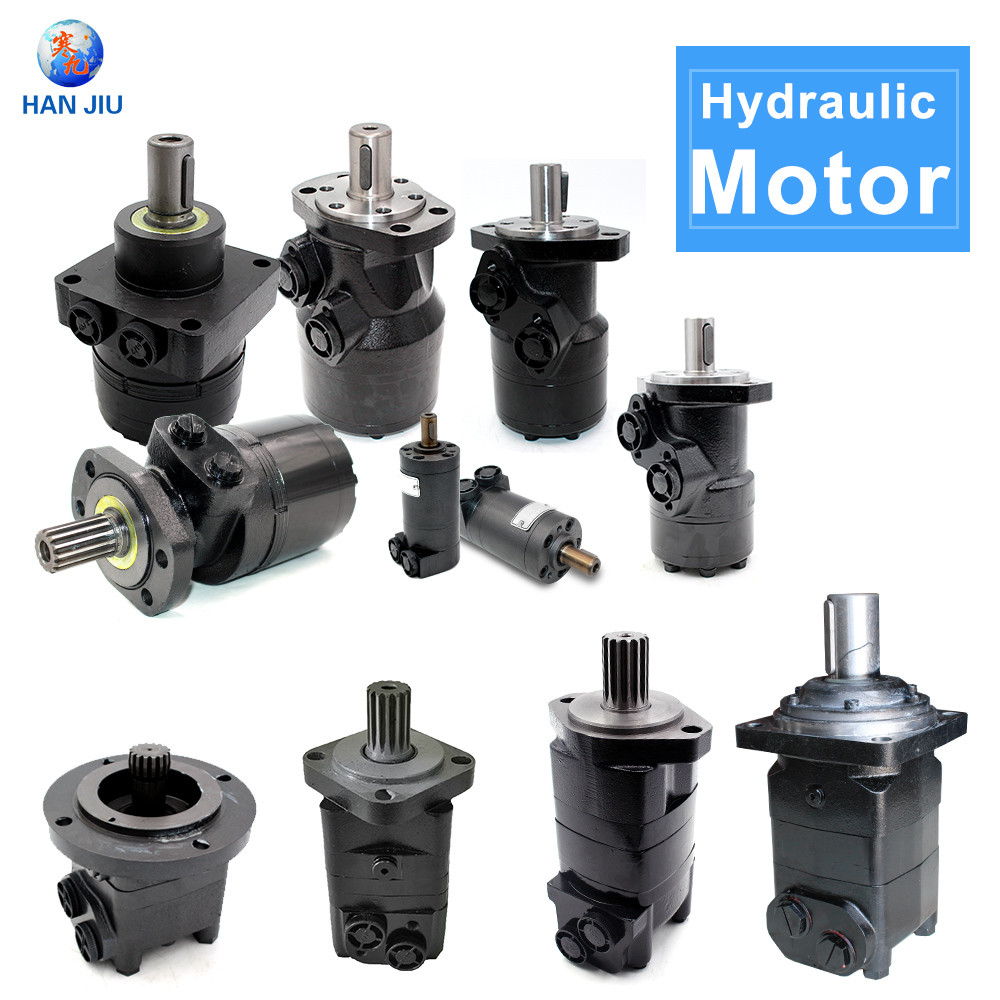

The orbital hydraulic motor also has the advantage of being compact and lightweight, which facilitates its integration into equipment and machines. Additionally, it is easy to maintain and repair, reducing maintenance costs.


In industry, orbital hydraulic motor is used in many fields such as agriculture, construction, mining and automobile. It is used to power equipment such as cranes, bulldozers, drills and agricultural machinery.
In conclusion, the orbital hydraulic motor is an essential device in many industrial sectors. With its efficiency, durability and versatility, it contributes to optimizing machine performance and increasing productivity in various applications.


HANJIU manufactures economical hydraulic motors, hydraulic directional valves and Orbitrol steering for all over the world.
