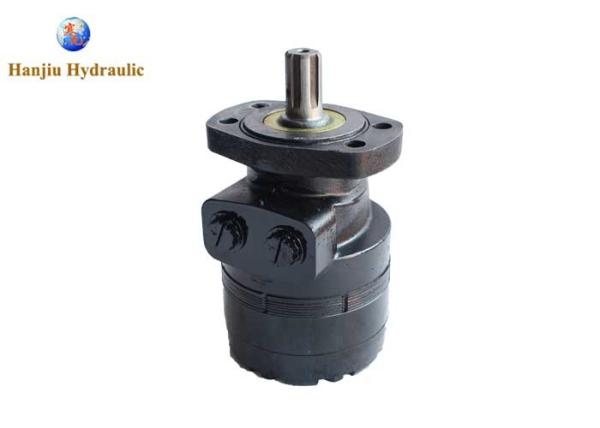

505375A3102AAAEG replacement low speed high torque motors 375 ml/r with SAE 6B shaft
This motor is a replacement one to Danfoss 505375A3102AAAEG
121 [7.4]
360
490 45 [12] 61 [16]
327 [2900]
383 [3400]
207 [3000] 241 [3500] 276 [4000]
160
162 [9.9]
370
470 61 [16] 76 [20]
475 [4200]
542 [4800]
207 [3000] 241 [3500] 276 [4000]
200
204 [12.4]
300
370 68 [18] 83 [22]
542 [4800]
633 [5600]
207 [3000] 241 [3500] 276 [4000]
230
232 [14.2]
260
320 68 [18] 83 [22]
644 [5700]
712 [6300]
207 [3000] 241 [3500] 276 [4000]
260
261 [15.9]
260
350 76 [20] 91 [24]
712 [6300]
791 [7000]
207 [3000] 241 [3500] 276 [4000]
300
300 [18.3]
250
320 83 [22] 95 [25]
825 [7300]
938 [8300]
207 [3000] 241 [3500] 276 [4000]
350
348 [21.2]
220
270 83 [22] 95 [25]
921 [8150]
1045 [9250] 207 [3000] 241 [3500] 276 [4000]
375
375 [22.8]
200
250 76 [20] 91 [24] 1006 [8900]
1158 [10250] 207 [3000] 241 [3500] 276 [4000]
470
465 [28.3]
160
200 76 [20] 91 [24] 1096 [9700]
1184 [10475] 172 [2500] 189 [2750] 207 [3000]
540
536 [32.7]
140
170 76 [20] 91 [24]
983 [8700]
1243 [11000] 138 [2000] 173 [2500] 207 [3000]
620
631 [38.5]
120
150 76 [20] 91 [24] 1014 [8976]
1291 [11421] 121 [1750] 155 [2250] 173 [2500]
750
748 [45.6]
100
130 76 [20] 91 [24] 1062 [9400]
1237 [10950] 103 [1500] 121 [1750] 138 [2000]
M
ax. Speed
Max. Flow
Max.
Torque
Max. Pressure
r
pm
lpm [gpm]
Nm [lb-in]
bar [psi]
C

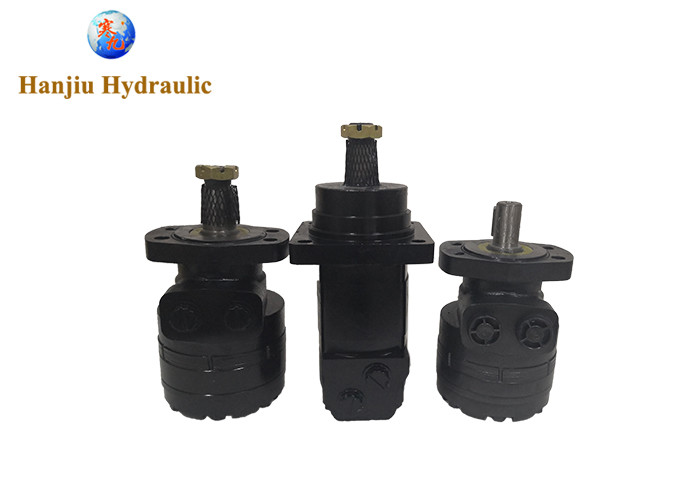

More Danfoss replacement motors available as below
121 cm3/rev [7.4 in3/rev]
162 cm3/rev [9.9 in3/rev]
204 cm3/rev [12.4 in3/rev]
232 cm3/rev [14.2 in3/rev]
261 cm3/rev [15.9 in3/rev]
300 cm3/rev [18.3 in3/rev]
348 cm3/rev [21.2 in3/rev]
375 cm3/rev [22.8 in3/rev]
465 cm3/rev [28.3 in3/rev]
536 cm3/rev [32.7 in3/rev]
631 cm3/rev [38.5 in3/rev]
748 cm3/rev [45.6 in3/rev]
This Series motors offer the perfect compromise between price and performance by producing work horse power at a reasonable cost. Although these motors perform well in a wide range of applications, they are especially suited for low flow, high pressure applications. During startup, pressure causes the balance plate to flex toward the rotor, vastly improving volumetric efficiency. As the motor reaches operating pressure, the balance plate relaxes, allowing the rotor to turn freely which translates into higher mechanical efficiencies. Transmitting this power to the output shaft is the most durable drive link in its class. Four bearing options, combined with standard mounting flanges and output shafts, allow the motor to be configured to suit nearly any application.
Hanjiu, your expert on hydraulic motors, contact us for pricing and availability
