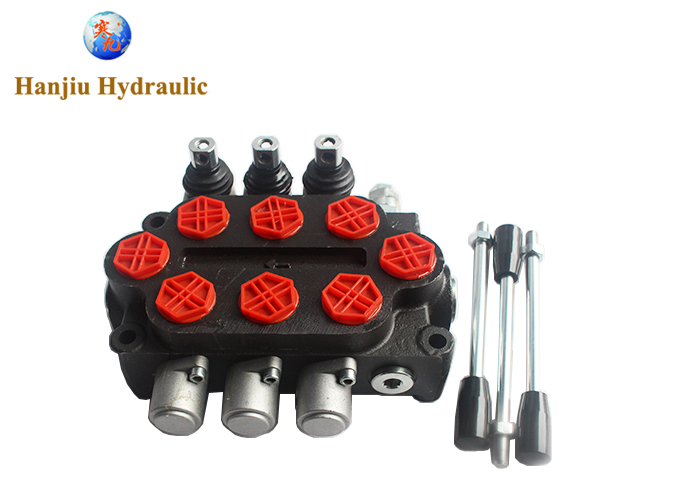

3 Spool 25 GPM Monoblock Directional Control Valve Double Acting Cylinder Spool
For Small Tractor Loaders,Log Splitters
| Ambient temperature | -40C...+60C |
| Viscosity | 12 ...800 mm2/s |
| Fluid temperature | -15C...+80C |
| Filtration | 10 to NAS 1638 |
| Max operating pressure | 200bar |
| Back pressure | 50 bar |
| Nominal flow | 90 l/min |
| Leakage(A,B-T) | 15cm3/min at 120bar |
| Spool stroke | 6 mm |
| Actuating force | < 200 N |
| Modification/ Spools | with 1 to 7 |
【 INNER CHECK & RELIEF VALVE】 The check valve inside the valve body is to insure the hydraulic oil not to be returned.
The relief valve inside the valve body is able to adjust the hydraulic system working pressure.
【 OIL WAY】Parallel circuit, power beyond option. ( Note: Maximum permissible degree of contamination of the oil is
according to GB/T14039-19/16. )
【 CONTROL WAY】Manual control, pneumatic control, hydraulic and electric control for optional.
【 APPLICATION】3 Spool Hydraulic Directional Control Valve is widely used in the hydraulic system of
forklift environment vehicle and light loading machines.
【 BEST SERVICE】100% Refund Guarantee, please be assured the purchase. Our products are sent from the US and can
be delivered quickly. If you have any questions or quality issue,please feel free to contact us. NICE CHOOSE will do our
best to help you solve the problem.
how to order it ?
1.pls note the flow rate is 90liters
2.choose the number of sections
3.choose the relief valve set pressure, from 150 to 250bar
4.pls tell the oil port size
5. pls tell the control type:S(manual), J(joystick), C(cable)
6.pls tell the spool functioin, like 2 acting 3position..
7.pls tell the spool return way, like spring/detent/ floating...
8.pls tell work port size
9.pls tell outlet port size
If you know about hydraulic systems, you will never doubt the importance of hydraulic directional control valves. The hydraulic directional control valve, as a control element that controls the specific direction of the mechanical oil circuit, determines the internal operating efficiency of the entire mechanical equipment. A hydraulic directional control valve that can indicate the direction of the oil circuit can be described as a beacon in the hydraulic system.
Once industrial machinery and equipment cannot operate normally, it is necessary to check whether the hydraulic directional control valve is damaged. The hydraulic directional control valve that cannot be used as usual will cause failure of the internal oil circuit of the equipment, which will cause the entire system to enter a paralyzed state. The position of hydraulic directional control valve is so important, do you still dare to buy fake and inferior products?
