Parker TB0330FP100AAAB TB Series LSHT Hydraulic Motor Replacement

Name: Parker TB0330FP100AAAB TB Series LSHT Hydraulic Motor Replacement
Brand: HANJIU
Price: 109 USD

Wholesale Parker TB0330FP100AAAB TB Series LSHT Hydraulic Motor Replacement from china suppliers

Brand Name : HANJIU

Model Number : TB0330FP100AAAB

Certification : CE

Place of Origin : China

MOQ : 100 Pieces

Price : 109 USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10000 pieces per year

Delivery Time : 55 work days

Packaging Details : Box, Pallet

Item : Orbit Hydraulic Motor

OEM # : TB0330FP100AAAB

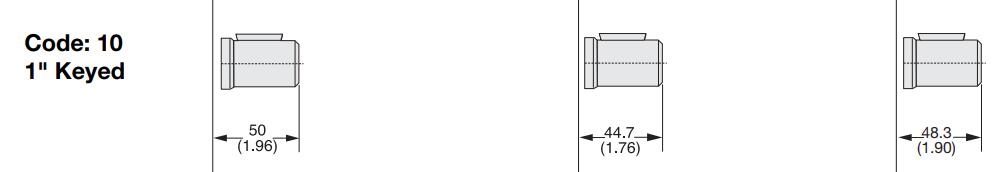

Shaft : 1" Keyed

Rotation : Standard

Maximum Speed : 171 cm3/rev

Max Flow : 45 LPM

Contact Now

Parker TB0330FP100AAAB TB Series LSHT Hydraulic Motor Replacement - Made in China

Quick Review:

Drop in replacement for Parker TB0330FP100AAAB low speed, high torque hydraulic motor. 19.5 cu. in. / rev displacement. Maximum pressure 1350 PSI continuous, maximum pressure 1650 PSI intermittent. Torque 3657 in-lb. continuous, torque 4505 in-lb. intermittent. Maximum speed 171 RPM continuous. Flow rate 15 GPM. 1" diameter shaft with woodruff key. 1/2" NPT ports. 4 Bolt SAE mounting flange. 1 year warranty.

Series Details

This light to medium duty motor incorporates all the features of heavy duty motors. Design features include a high pressure shaft seal so external drains are never required, roller vane technology for automatic wear compensation, and full flow internal cooling and flushing. This is a very economical motor for most light to medium duty applications.

Specifications

Series:	TB
Rotation:	Standard
Mounting:	4 Bolt
Maximum Speed:	171 rev/min
Maximum Oil Flow:	45 lpm
Max. Differential Pressure:	125 bar
Maximum Torque:	509 Nm
