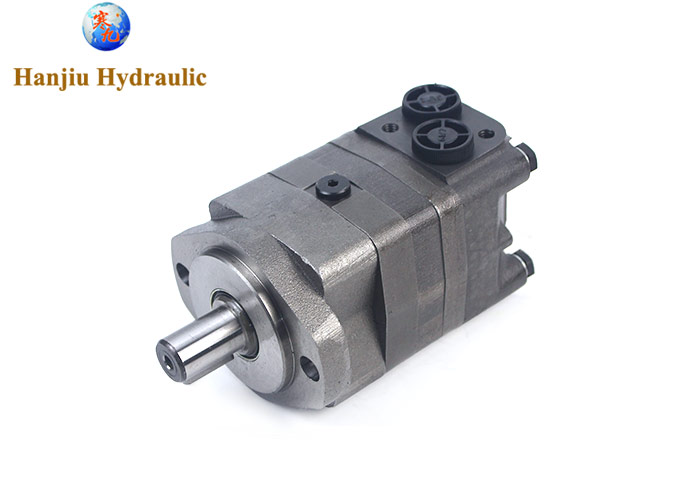

Danfoss Hydraulic Orbital Motor OMS100 100cc/rev with 32mm Straight / Parallel Shaft
Details as below:
- Port Size:G1/2
- displacement:100.8cc
- Shaft Type parallel key shaft,32mm
- Port Location Side Ported
- Flow Rating :75l/min
- Pressure Rating 21
- Displacement 194
- Max Speed 450
- Service Parts BMSY Seal Kit
- Country of Manufacture China
Main Specifications:
| Type | BMSY
80 | BMSY
100 | BMSY
125 | BMSY
160 | BMSY
200 | BMSY
250 | BMSY
315 | BMSY
400 | BMSY 475 |
Geometric displacement
(cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 394 | 475 |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 185 | 155 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 225 | 185 |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 880 | 910 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 980 | 990 |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | 760 |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11 | 9 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 12 | 11 |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 16 | 14 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 19 | 15 |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 21 | 17.5 |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | 14.3 |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
Hanjiu Hydraulic Factory specializes in designing and producing any type of motor and steering machine that customers need, from large to small, from low displacement to high displacement, etc., and they can completely replace Danfoss, Eaton, M+S series and so on. The products produced are widely used in construction machinery, mining machinery, metallurgical machinery, petroleum machinery, agricultural machinery, injection molding machinery, fishery machinery, military engineering and other fields, and the radiation area of product sales is as high as more than a dozen countries.
Hanjiu hydraulic press factory not only in the product has reached an excellent field height, management and after-sales service and other aspects are also very attentive, their factory to integrity first, quality first for the purpose, from employees on the job, raw materials into the factory, from parts processing, assembly suggestions until the product factory, there is a set of more perfect product quality system, and passed the CE certification. Hanjiu factory is committed to becoming an internationally renowned brand, and looks forward to long-term cooperation with more demanders of hydraulic products.
Product Tags:
|
|

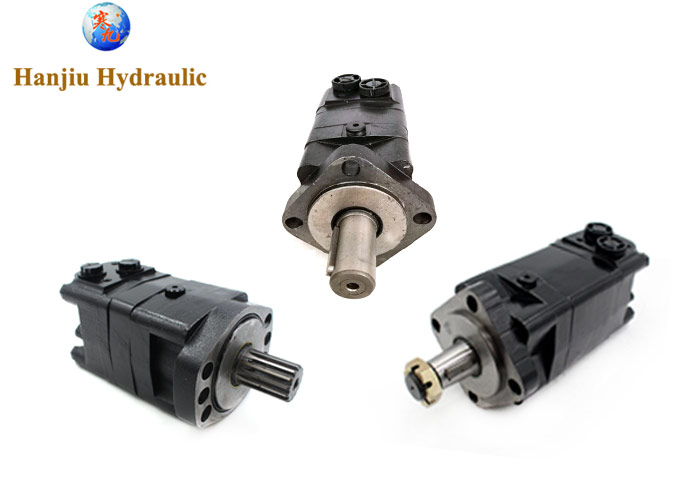

Danfoss Oms100 Orbit Hydraulic Motor 100cc/Rev With 32mm Straight / Parallel Shaft Images
|
