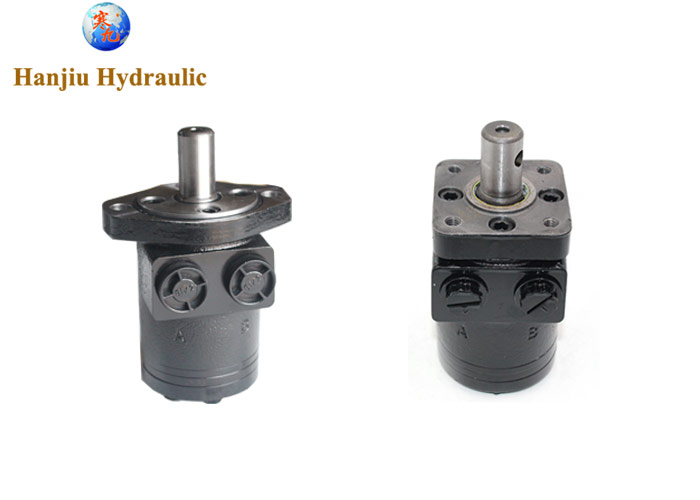

hydrmotor OMP100 gerotor motor, technical information cylindrical shaft 25 mm,side port
hydraulic motors specification as below
- Displacement: 100cc
- Flange H5 Ø82.55mm
- Shaft: Straight key25mm, paralle key 6.35x6.35x31.75
- Ports: G1/2
- Drain port:G1/4
other types we supply
Side port version with 4-hole oval mounting flange
| Type | OMP 50 | OMP 80 | OMP 100 | OMP 125 | OMP 160 | OMP 200 | OMP 250 | OMP 315 | OMP 400 |
| Cylindrical shaft 25 mm | 151-5011 | 151-5012 | 151-5013 | 151-5014 | 151-5015 | 151-5016 | 151-5017 | 151-5018 | 151-5019 |
| Cylindrical shaft 32 mm | 151-5001 | 151-5002 | 151-5003 | 151-5004 | 151-5005 | 151-5006 | 151-5007 | 151-5008 | 151-5009 |
| Splined shaft 1 inch | 151-5031 | 151-5032 | 151-5033 | 151-5034 | 151-5035 | 151-5036 | 151-5037 | 151-5038 | 151-5039 |
| Weight (kg) | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 6.6 | 6.9 | 7.4 |
Side port version with 2-hole oval mounting flange incorporated corrosion resistant parts
| Type | OMP 50 | OMP 80 | OMP 100 | OMP 125 | OMP 160 | OMP 200 | OMP 250 | OMP 315 | OMP 400 |
| Cylindrical shaft 25 mm | 151-1208 | 151-1209 | 151-1210 | | 151-1211 | 151-1212 | 151-1213 | 151-1214 | 151-1215 |
| Weight (kg) | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 6.6 | 6.9 | 7.4 |
Related products:
OMP100 Hydraulic motor is a cost-effective motor produced by HANJIU TECHNOLOGY. After years of use by users, it has been proved that its quality is stable, safe, reliable and energy-saving. In today's article, we will share the working principle of hydraulic motor and the basis for its safety and reliability.
What is a hydraulic motor?what is the working principle of a hydraulic motor?
Principle of hydraulic motor: It is a device that uses hydraulic oil to transmit pressure. When hydraulic oil transmits pressure in a closed container, it follows Pascal's law. The hydraulic transmission system of a hydraulic press consists of a power mechanism, a control mechanism, an actuator, an auxiliary mechanism and a working medium. The power mechanism usually uses an oil pump as the power mechanism, generally a positive displacement oil pump. In order to meet the requirements of the movement speed of the actuator, choose one oil pump or multiple oil pumps. Rotary pump for low pressure (oil pressure less than 2.5MP); vane pump for medium pressure (oil pressure less than 6.3MP), plunger pump for high pressure (oil pressure less than 32.0MP).
HANJIU TECHNOLOGY's products are for customers who want to reduce costs while maintaining high performance motors, if you are an importer, distributor, OEM, you may be eligible for dealer discounts. Please get in touch with us.
