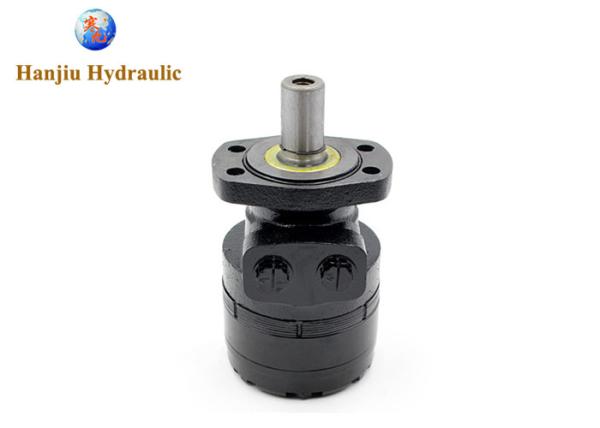

Tf Series Lsht Orbit Hydraulic Motor 1 1/4" Keyed Magneto Mounting 334 Rpm

Name: Tf Series Lsht Orbit Hydraulic Motor 1 14quot Keyed Magneto Mounting 334 Rpm
Brand: HANJIU
Price: 1 USD

Wholesale Tf Series Lsht Orbit Hydraulic Motor 1 1/4" Keyed Magneto Mounting 334 Rpm from china suppliers

Brand Name : HANJIU

Model Number : TF0280MS030AAAA

Certification : CE

Place of Origin : China

MOQ : 100 Pieces

Price : Contact the seller to get a quote

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10000 pieces per year

Delivery Time : 55 work days

Packaging Details : Box, Pallet

Item : Torqmotor

OEM # : TF0280MS030AAAA

Manufacturer : Hanjiu

Displacement : 280 ml/r

Mounting flange : 4-hole

Shaft type : key shaft

Contact Now

TF Series LSHT Motor, 1 1/4" Keyed, Magneto Mounting, Maximum Speed 334 RPM

Quick review:

TF0280MS030AAAA Parker compatible low speed, high torque hydraulic motor. 19.20 cu. in. / rev displacement. Maximum pressure 1766 PSI continuous. Torque 4956 in-lb. continuous. Maximum speed 240 RPM continuous. Flow rate 34.0 GPM. 1 1/4" diameter shaft with keyway. 7/8-14 SAE ports. Magneto mounting flange. 1 year warranty

Sturdy construction throughout makes TF Series motors suitable for the most severe applications. All splines are constantly flushed with cool fluid for durability. Roller vanes and sealed commutation assure high volumetric efficiency, smooth low speed operation and extended life. Shaft seals can withstand full system pressure and are washed in cool fluid for long life.

Small Frame Low Speed, High Torque Motor
Manufacturer: Hanjiu

Details specifications

Series:	TF
Shaft:	Key shaft
Rotation:	Clockwise rotation
Displacement (cm3/rev):	19.20 cu. in. / rev
Mounting:	4 Bolt
Maximum speed:	240 RPM continuous

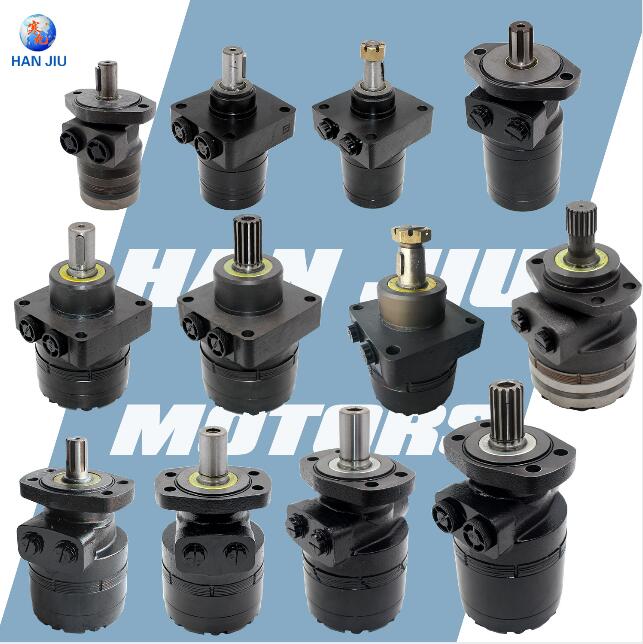

More Parker type Torque motors:

TB, TC, TJ, TE, TF, TG, TK
