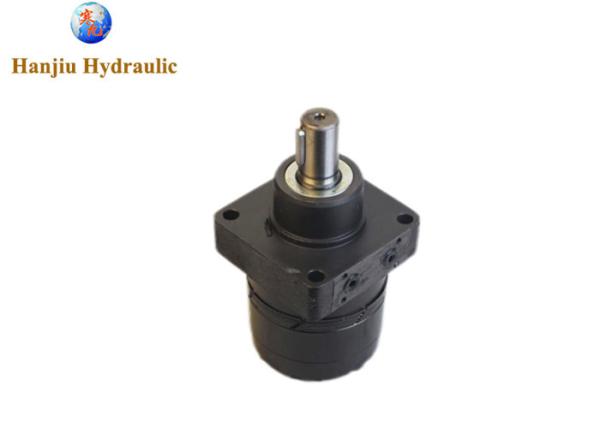

LSHT Torqmotor TG0475 Series Manifold Wheel Flange φ32mm key shaft Parker motor
HANJIU supply the LSHT Torqmotors BMER Series motors matching Parker TG series motors, the same function.
this type of motors are widely used on lown mower machines, tractor mower machines, mathing the brand Exmark/Toro/Scag/Hustler...
Details specifications
| Series: | TG |
| Shaft: | φ32mm key shaft, |
| Rotation: | Reverse Standard |
| Displacement (cm3/rev): | 0475 |
| Mounting: | Wheel, Standard |
| Geometric Displacement: | 475cm3/rev (29.1 in3/rev) |
| Maximum Speed: | 237 rev/min |
| Maximum Oil Flow (continuous / intermittent): | 76 lpm (20 gpm) / 114 lpm (30 gpm) |
| Max. Differential Pressure (continuous / intermittent): | 138 bar (2000 PSID) / 207 bar (3000 PSID) |
| Maximum Supply Pressure: | 300 bar (4350 PSIG) |
| Maximum Torque - Continuous / Intermittent: | 887 Nm (7853 lb-in) / 1372Nm (12145 lb-in) |
| Maximum Performance: | 28 KW (38HP) |
| Minimum Starting Torque - Continuous / Intermittent: | 740 Nm (6549 lb-in) / 1120 Nm (9909 lb-in) |
Specificaion
| Type | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER |
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 |
| Geometric displacement (cm3/rev.) | | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 |
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 |
PARKER Hydraulic Motors
TB
TE
TF
TG
TJ
Hanjiu technology is the leading hydraulic orbit motors manufacturer from China, we have experienced engineers who are engaged in this field on more than 20years, and knowing well of Danfoss/M+S/Charlynn/Parker motor...we have our own design and tech department, Hanjiu has a lot of advanced equipments,so We can continuously innovate, improve, expand product range and increase production capacity.
we are not supply the service to hydraulic products distributors, fluid power company, but also supplying for machines manufacturer.our products can be totally fitting your machines, the better price can be lower your costs and bring your products more competitive.we hope to build a long business relationship to solve your problems and make you become stronger.
