Compact Size Hydraulic Wheel Drive Units TG Serises BMER OEM Available

Name: Compact Size Hydraulic Wheel Drive Units TG Serises BMER OEM Available
Brand: HANJIU
Price: 1 USD

Wholesale Compact Size Hydraulic Wheel Drive Units TG Serises BMER OEM Available from china suppliers

Brand Name : HANJIU

Model Number : BMEW

Certification : CE

Place of Origin : CHINA

MOQ : 30 Sets

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000000 sets per year

Delivery Time : 10-15 work days

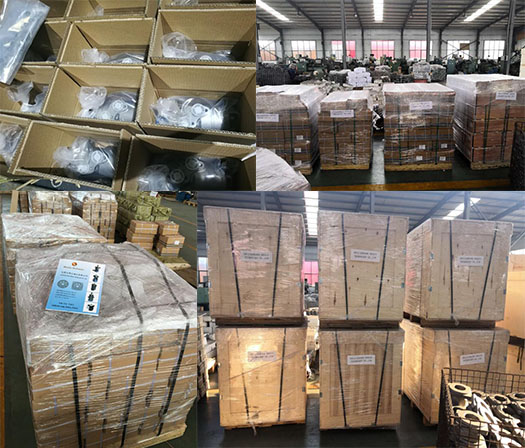

Packaging Details : Carton Packing and finally with a Tray, or Wooden Box

Type : Hydraulic Orbital Wheel Motor

Speed : 230rpm-908rpm

OEM : Available

Displacement : 80cc-490cc

Warranty : 12-18 months

Application : Construction Machines, Heavey Machines, Rollers etc.

Contact Now

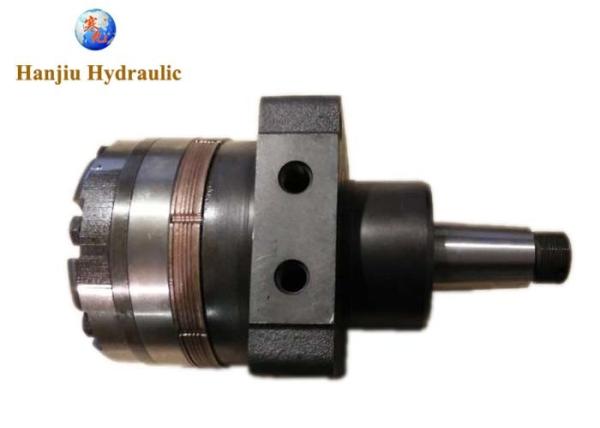

Hydraulic Drive Wheel Motor TG Serises BMER Provide Power For The Wheel Of Loaders

Features:

(1) Compact size, high efficiency

(2) Low-friction and long life advantages

(3) Internal check valves, Escort seal

(4) This motor has a rugged housing with an extra large capacity side load bearing

(5) Shaft seal can bear high pressure of back and the motor can be used in parallel or series

(6) Geroler and drive use the SMT series motors parameter, prolong operating life.

Specification:

Model: BMER1-200-WS-T4-S

Disp. 11.96 cu.in./rev.

Pressure:

2973 PSI(Cont.)

3481 PSI(Int.)

Torque

4691 in-lb. (Cont.)

6310 in-lb. (Int.)

Speed

330 PRM (Cont.)

425 RPM (Int.)

Flow

18.5 GPM (Cont.)

22.4 GPM (Int.)

Rotation Reversible

Mount 4 Bolt Wheel

5.812 bolt circle, 3-1/4" pilot dia

Shaft 1-1/4" tapered*4.21"

shaft w/5/16" key and threaded end

Ports SAE 10

Size 4.94"*5.25"*5.45"

Shpg. 30lbs.

BMER SERIES HYDRAULIC MOTOR

Main Specificaion

Type		BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER
Type		125	160	200	230	250	300	350	375	475	540	750
Geometric displacement (cm3/rev.)		118	156	196	228	257	296	345	371	462	540	745
Max. speed (rpm)	cont.	360	375	330	290	290	250	220	200	160	140	100
Max. speed (rpm)	int.	490	470	425	365	350	315	270	240	195	170	120
Max. torque (N•m)	cont.	325	450	530	625	700	810	905	990	1085	980	1050
	int.	380	525	600	710	790	930	1035	1140	1180	1240	1180
	peak	450	590	750	870	980	1120	1285	1360	1260	1380	1370
Max. output (kW)	cont.	12.0	15.0	15.5	16.0	17.5	18.0	17.5	16.5	14.5	11.5	8.0
Max. output (kW)	int.	14.0	17.5	18.0	19.0	20.0	21.0	20.0	19.0	16.5	15.0	10.0
Max. pressure drop (MPa)	cont.	20.5	20.5	20.5	20.5	20.5	20.5	20.5	20.5	17.5	14	10.5
	int.	24	24	24	24	24	24	24	24	19	17.5	12
	peak	27.6	27.6	27.6	27.6	27.6	27.6	27.6	27.6	20.5	20.5	14
Max. flow (L/min)	cont.	45	60	70	70	75	80	80	75	75	75	75
Max. flow (L/min)	int.	60	75	85	85	90	95	95	90	90	90	90

Compact Size Hydraulic Wheel Drive Units TG Serises BMER OEM Available
