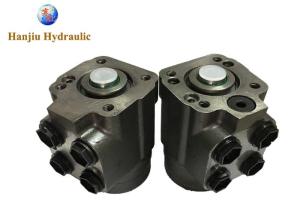

Compact Hydraulic Steering Unit 102S / HKUS For Tractor CE Approved

Name: Compact Hydraulic Steering Unit 102S HKUS For Tractor CE Approved
Brand: HANJIU
Price: 1 USD

Wholesale Compact Hydraulic Steering Unit 102S / HKUS For Tractor CE Approved from china suppliers

Brand Name : HANJIU

Model Number : 102S Steering Unit

Certification : CE

Place of Origin : China

MOQ : 10 Pieces

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100000 Pieces One Year

Packaging Details : Carton Box

Product Name : Hydraulic Steering Unit 102S

Brand : HANJIU

Displacement : 50cc - 800cc

Application : Agriculture Tractor Steering

Features : Tractor Parts Steering Unit

Contact Now

Hydraulic Steering Unit 102S / HKUS Hydrostatic Steering Unit Tractor

1. Characteristic Features

► 102S Orbital Steering Valve is with relief valve ,suction valve, inlet check valve intergrated.

► Different valve can be assembled freely,compact ,more convenient ,fitting.

► European and American standards.

2. Specification

Parameters	Series 102S----*

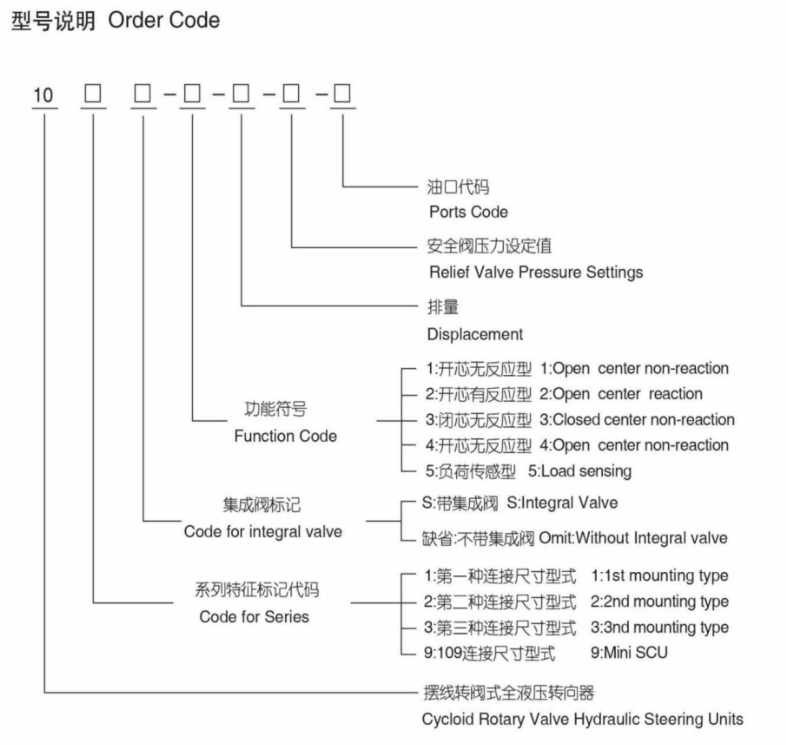

Function code	1,2,4							1,4
Displacement (mL/r)	50	63	80	100	125	160	200	250	280	315	400
Rated Flow (L/min)	5	6	8	10	12.5	16	20	25	28	32	40
Max.input pressure(Mpa)	16
Relief Valve Pressure Settings ( MPa)	06,07,08,10,12,14,15,16
Shock Valve Pressure Settings ( MPa)	12,13,14,16,18,20,21,22
Max.cont.back pressure	2.5
Weight(kg)	5.75	5.81	5.89	5.96	6.1	6.3	6.5	6.73	6.91	7.1	7.5
Dimension L (mm)	130	132	134	137	140	145	150	156	161	166	176

Compact Hydraulic Steering Unit 102S / HKUS For Tractor CE Approved

3. Application

102S / HKUS Hydraulic steering units used for Tractor OEM Parts

OEM Number
AL55954
AL28268
AL35832
AL55956
AL32758
AL35834
AL41604
AL55308
AL41631
AL41291
AL55296

Compact Hydraulic Steering Unit 102S / HKUS For Tractor CE Approved
