4 Bolt 44.4mm Pilot Low Speed High Torque Hydraulic Motor BMR 400cc For Agricultural

Name: 4 Bolt 444mm Pilot Low Speed High Torque Hydraulic Motor BMR 400cc For Agricultural
Brand: HANJIU
Price: 1 USD

Wholesale 4 Bolt 44.4mm Pilot Low Speed High Torque Hydraulic Motor BMR 400cc For Agricultural from china suppliers

Brand Name : HANJIU

Model Number : BMR

Certification : CE

Place of Origin : China

MOQ : 50 Pieces

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 100,000 Pieces per year

Delivery Time : 10-15 working days

Packaging Details : Carton Packing, finally with a tray or wooden box

Product Name : Hydraulic Engine

Warranty Time : 12 months

Model Namber : BMR

Feature : Replace Eaton103 Series, , M+S, Parker, etc

Displacement : 80cc, 100cc, 160cc, 200cc, 250cc, 315cc, 400cc

Application : Agricultural, Forestry, Construction, etc

Contact Now

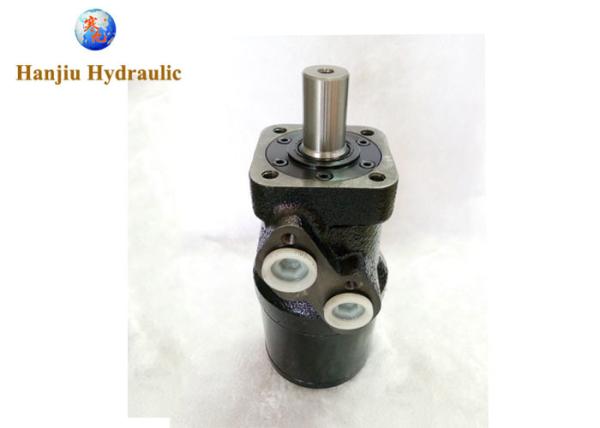

Low Speed High Torque Hydraulic Motor BMR-400cc, 4 Bolt, 44.4mm Pilot

Characteristic Features:

1. Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.

2. Shaft seal can bear high pressure of back and the motor can be used in parallel or in series.

3. Special design in the driver-linker and prolong operating life

4. Special design for distribution system can meet the requirement of low noise of unit.

5. Compact volume and easy installation.

Reference Brand List:

HANJIU	M+S	EATON		ROSS	WHITE	PARKER	SAM	BOSCH
HYDRAULIC	HYDRAULIC	CHAR LYNN		TRW	CROSS	PARKER	BREVINI	REXROTH
HYDRAULIC	HYDRAULIC	CHAR LYNN		TRW	CROSS		BREVINI	REXROTH
BMM	MM		OMM					MGX
	MLHK	J SERIES		-	-	-	BGM
BMP/BM1	MP		OMP	MF	WP	TC	BG	MGP, GMP
						TE
	HP	H SERIES	DH	MG	RS	TB
BMR/BM2	MR		OMR	MB	WR		BR	MGR, GMR
	HR	S,T SERIES	DS		RE	TF
	MLHRW, RW	W SERIES	OMEW
BMH/BM4	MH		OMH
	MLHH			ME
	HW, HWF				RE	TG
BMS/BM5	MS, MSY		OMS			TG		MGS, GMS
							HPR
	MLHS	2000 SERIES		ME	RE
BMT/BM6	MT		OMT					MGT, GMT
	MLHT	6000 SERIES		MJ			HT
	MTM		TMT
BMV	MV		OMV					MGV, GMV
	MLHV	10000 SERIES

Main Specification:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

Technical data for BMR with 31.75 and 32 shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1250	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1520	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	380	450	540	550	580
	int.	83	126	220	280	340	430	500	610	690	690
	peak	105	165	270	320	370	460	560	710	840	830
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	11	10	9	7.5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	12	10	9
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	17.5	17.5	17.5	13.5	11.5
	int.	16.5	17.5	20	20	20	20	20	20	17.5	15
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	21	17.5
Max. flow (L/min)	cont.	45	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	55	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

4 Bolt 44.4mm Pilot Low Speed High Torque Hydraulic Motor BMR 400cc For Agricultural

Applications:

BMR series orbital motor can widely use for combination, rotocultivators, mowers, drill, sweeper, roller and planter, etc.
