Cone Shaft 45mm Low Speed High Torque Hydraulic Motor Drilling Rig Motor

Product Categories
Shijiazhuang Hanjiu Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Cone Shaft 45mm Low Speed High Torque Hydraulic Motor Drilling Rig Motor

  • 1
  • 2

Brand Name : HANJIU

Model Number : Hanjiu BMT315

Certification : CE

Place of Origin : China

MOQ : 5 Pieces

Price : Negotiable

Payment Terms : Western Union, Western Union, L/C, T/T

Supply Ability : 60000 Pieces One Year

Packaging Details : Carton Box

Product Name : Hydraulic Orbital Motor

Features : High pressure oil seal

Displacement : 160cc--800cc

Application : Hydraulic Drilling Rigs Equipment

Contact Now

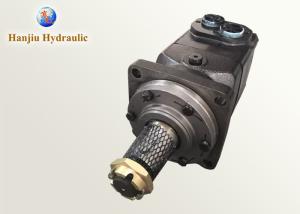

Motor 151B3015 OMT315 Cone Shaft 45mm Low Speed High Torque Drilling Rig Motor

Hanjiu BMT315 = OMT315 151B-3015

Displacement: 315cc

Flange: 4-Ø14 square flange Ø160

Pilot: Ø125

Shaft: Cone shaft 1:10 Ø45

Key: B12*8*28

Oil Port: G3/4

• Hanjiu are professional manufacturer produce Hydraulic Orbital Motors.

• Hanjiu Motors match than ,M+S,Eaton,Brevini,Parker and White.

• Processing equipment from Germany,high pressure oil seal,precision parts processing.
Hanjiu Hydraulic BMT Motors Displacement
BMT / MT / OMT / HT 160cc
BMT / MT / OMT / HT 200cc
BMT / MT / OMT / HT 250cc
BMT / MT / OMT / HT 315cc
BMT / MT / OMT / HT 400cc
BMT / MT / OMT / HT 500cc
BMT / MT / OMT / HT 630cc
BMT / MT / OMT / HT 800cc

Specification

Type BMT 160 BMT 200 BMT 230 BMT 250 BMT 315 BMT 400 BMT 500 BMT 630 BMT 800
Geometric displacement
(cm3 /rev.)		 161.1 201.4 232.5 251.8 326.3 410.9 523.6 629.1 801.8
Max. speed (rpm) cont. 625 625 536 500 380 305 240 196 154
int. 780 750 643 600 460 365 285 233 185
Max. torque (N·m) cont. 470 590 670 730 950 1080 1220 1318 1464
int. 560 710 821 880 1140 1260 1370 1498 1520
peak 669 838 958 1036 1346.3 1450.3 1643.8 1618.8 1665
Max. output (kW) cont. 27.7 34.9 34.7 34.5 34.9 31.2 28.8 25.3 22.2
int. 32 40 40 40 40 35 35 27.5 26.8
Max. pressure drop
(MPa)		 cont. 20 20 20 20 20 18 16 14 12.5
int. 24 24 24 24 24 21 18 16 13
peak 28 28 28 28 28 24 21 19 16
Max. flow (L/min) cont. 100 125 125 125 125 125 125 125 125
int. 125 150 150 150 150 150 150 150 150
Max. inlet pressure
(MPa)		 cont. 21 21 21 21 21 21 21 21 21
int. 25 25 25 25 25 25 25 25 25
peak 30 30 30 30 30 30 30 30 30
Weight (kg) 19.5 20 20.4 20.5 21 22 23 24 25

Cone Shaft 45mm Low Speed High Torque Hydraulic Motor Drilling Rig Motor

Hanjiu Workshop

Our processing equipment from Germany,oil seal is high pressure oil seal,precision parts processing and strict quality control.

Cone Shaft 45mm Low Speed High Torque Hydraulic Motor Drilling Rig Motor

Hanjiu Exhibition Booth

Cone Shaft 45mm Low Speed High Torque Hydraulic Motor Drilling Rig Motor

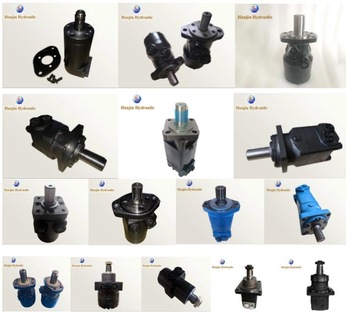

Hanjiu Other Motors
Cone Shaft 45mm Low Speed High Torque Hydraulic Motor Drilling Rig Motor
