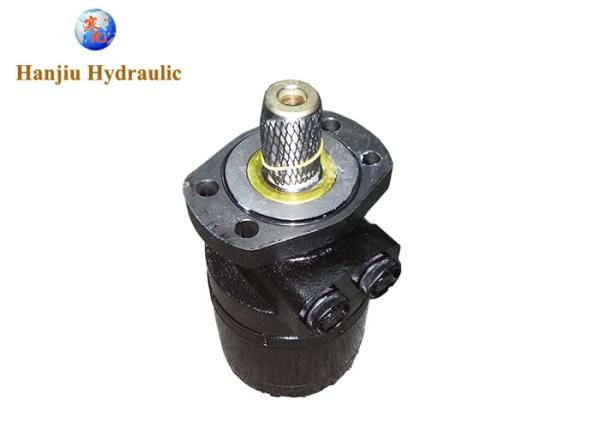

Parker TG0475 TG0530 TG0750 Hydraulic Motor BMER475 BMER530 BMER750

Name: Parker TG0475 TG0530 TG0750 Hydraulic Motor BMER475 BMER530 BMER750
Brand: HANJIU
Price: 1 USD

Wholesale Parker TG0475 TG0530 TG0750 Hydraulic Motor BMER475 BMER530 BMER750 from china suppliers

Brand Name : HANJIU

Model Number : BMER-2-750MDG2B

Certification : CE

Place of Origin : CHINA

MOQ : 30 Sets

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000 sets per year

Delivery Time : 25 - 30 work days

Packaging Details : 50x21x21cm/ pc/ carton, carton/ pallets

Type : Hydraulic Wheel Motor

Features : Replace Parker TE TG TF

Displacement : 750 ml/r (variety size available)

Flange : 4-13.5 Magneto Mount

Ports : G 1/2

Shaft : 1.25'' (31.75 mm )

Rotation : Standard

Paint : Black

Contact Now

Parker TG0475 TG0530 TG0750 Hydraulic Motor BMER475 BMER530 BMER750

Hanjiu High Torque BMER-2-750MDG2B Replaces American Parker Conical Cycloidal Hydraulic Oil Motor

BMER-2-750MDG2B

1,	model number	BMER-2-750MDG2B
2,	displacement	750 ml/r
3,	flange	4 - 4-13.5 Magneto Mount
4,	shaft	1.25'' ( 31.75 ) mm straight shaft, parrel key
5,	oil port	G 1/2
6,	drain
7,	rotation	Standard
8,	paint	Black
9,	replace	Parker TE TG TF

Main Specificaion

Type		BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER
Type		125	160	200	230	250	300	350	375	475	540	750
Geometric displacement (cm3/rev.)		118	156	196	228	257	296	345	371	462	540	745
Max. speed (rpm)	cont.	360	375	330	290	290	250	220	200	160	140	100
Max. speed (rpm)	int.	490	470	425	365	350	315	270	240	195	170	120
Max. torque (N•m)	cont.	325	450	530	625	700	810	905	990	1085	980	1050
	int.	380	525	600	710	790	930	1035	1140	1180	1240	1180
	peak	450	590	750	870	980	1120	1285	1360	1260	1380	1370
Max. output (kW)	cont.	12.0	15.0	15.5	16.0	17.5	18.0	17.5	16.5	14.5	11.5	8.0
Max. output (kW)	int.	14.0	17.5	18.0	19.0	20.0	21.0	20.0	19.0	16.5	15.0	10.0
Max. pressure drop (MPa)	cont.	20.5	20.5	20.5	20.5	20.5	20.5	20.5	20.5	17.5	14	10.5
	int.	24	24	24	24	24	24	24	24	19	17.5	12
	peak	27.6	27.6	27.6	27.6	27.6	27.6	27.6	27.6	20.5	20.5	14
Max. flow (L/min)	cont.	45	60	70	70	75	80	80	75	75	75	75
Max. flow (L/min)	int.	60	75	85	85	90	95	95	90	90	90	90

Eaton/ / White/ Parker
101-1001
101-1004
101-1022
101-1031
103-1004
103-1027
103-1030
103-1032
104-1001
104-1002
104-1004
104-1027
104-1028
112-1068
119-1030
119-1031
119-1028
119-1029
TE0065
TE0100
TE0165
TE0195
TG0475
TG0530

Applications:

Wheel Motor Orbital type is one type of high torque low speed hydraulic motors, with high efficiency and long life. Which can be widely used for kinds of Rollers, Heavey Machines, Construction Machines etc. To know more details, like technical data or drawing, pls directly contact us or to download from our main website.
