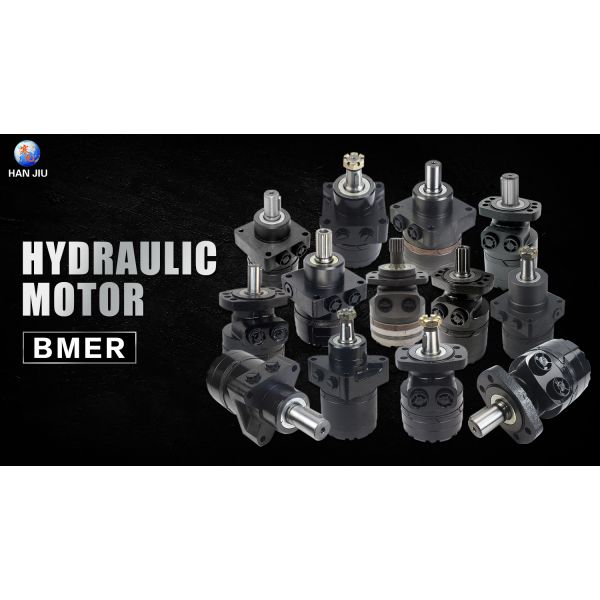

Hydraulic motor low speed high torque 32.94 cubic inch displacement BMER-2-540-FD-AW

Brand Name : HANJIU

Model Number : BMER-2-540-FD-AW

Certification : CE, ISO9001

Place of Origin : China

MOQ : 10 Pieces

Price : 160 usd/pc

Payment Terms : T/T,Western Union

Supply Ability : 10000 pieces per year

Delivery Time : 35 - 45 work days

Packaging Details : box, pallet

Product : Low Speed High torque Hydraulic Motor

Model No. : BMER-2-540-FD-AW

Size : 540ml/r

Flange : Magneto Mount 6-Hole

Shaft : 25MM Key shaft

Rotation : CCW

Port : offsite ports

Material : Cast iron

Contact Now

Hydraulic motor low speed high torque 32.94 cubic inch displacement BMER-2-540-FD-AW

Product details
Product Low Speed High Torque Hydraulic Motor
Model No. BMER-2-540-FD-AW
Displacement 540ml/r
Flange
Magneto Mount 6-Hole
Shaft
Cylindrical shaft Ø25
Parallel key 8X7X32
Rotation CCW
Port
7/8-14UNF

Technical Specifications
Type BMER 125 BMER 160 BMER 200 BMER 230 BMER 250 BMER 300 BMER 350 BMER 375 BMER 475 BMER 540 BMER 750
Geometric displacement (cm3/rev.) 118 156 196 228 257 296 345 371 462 540 745
Max. speed (rpm) cont. 360 375 330 290 290 250 220 200 160 140 100
Max. speed (rpm) int. 490 470 425 365 350 315 270 240 195 170 120
Max. torque (N•m) cont. 325 eca450 530 625 700 810 905 990 1085 980 1050
Max. torque (N•m) int. 380 525 600 710 790 930 1035 1140 1180 1240 1180
Max. torque (N•m) peak 450 590 750 870 980 1120 1285 1360 1260 1380 1370
Max. output (kW) cont. 12.0 15.0 15.5 16.0 17.5 18.0 17.5 16.5 14.5 11.5 8.0
Max. output (kW) int. 14.0 17.5 18.0 19.0 20.0 21.0 20.0 19.0 16.5 10.0
Max. pressure drop (MPa) cont. 20.5 20.5 20.5 20.5 20.5 20.5 20.5 20.5 17.5 14 10.5
Max. pressure drop (MPa) int. 24 24 24 24 24 24 24 24 19 17.5 12
Max. pressure drop (MPa) peak 27.6 27.6 27.6 27.6 27.6 27.6 27.6 27.6 20.5 20.5 14
Max. flow (L/min) cont. 45 60 70 70 75 80 80 75 75 75 75
Max. flow (L/min) int. 60 75 85 85 90 95 95 90 90 90 90
Hydraulic motor low speed high torque 32.94 cubic inch displacement BMER-2-540-FD-AW
Hydraulic motor low speed high torque 32.94 cubic inch displacement BMER-2-540-FD-AW
Hydraulic motor low speed high torque 32.94 cubic inch displacement BMER-2-540-FD-AW
Benefits:
Optimal performance in industrial settings
Durable and long-lasting design
Ensures smooth operation of machinery
Enhances overall efficiency
Whether you need a motor for your manufacturing plant or industrial equipment, the HANJIU TECHNOLOGY BMER-2-540-FD-AW Motor is the perfect choice. Invest in quality and reliability for your operations
