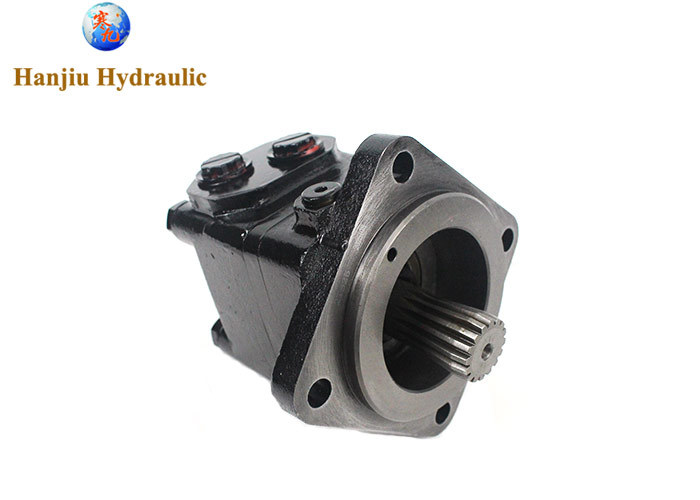

Orbit Hydraulic Motor BMTS250 Bearingless motor interchangeable charlynn 6000 series motor
Details
the order code BMTS-250-E-S1
- Output volume (cc/rev): 250cc
- max r.p.m.: 600
- Torque max. (Nm): 730/880
- Power max. (kW): 34.5
- Pressure difference (bar): 200
- Inlet pressure (bar): 280
- Volume flow max. (l/min): 125
- Engine version: with non-return valves
- Connection: 1 1/16-12UN
- Leakage oil connection: 7/16-UNF
Main Specifications:
| Type | BMT
160 | BMT
200 | BMT
230 | BMT
250 | BMT
315 | BMT
400 | BMT
500 | BMT
630 | BMT
800 |
| displacement (cm3/rev. ) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 |
Max. speed
(rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 |
| Max. torque (N.m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 |
| Max. output (KW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 |
| Max.pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 |
| Max. flow (L/min) | rated | 80 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
Max. inlet
pressure (Mpa) | cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 |
